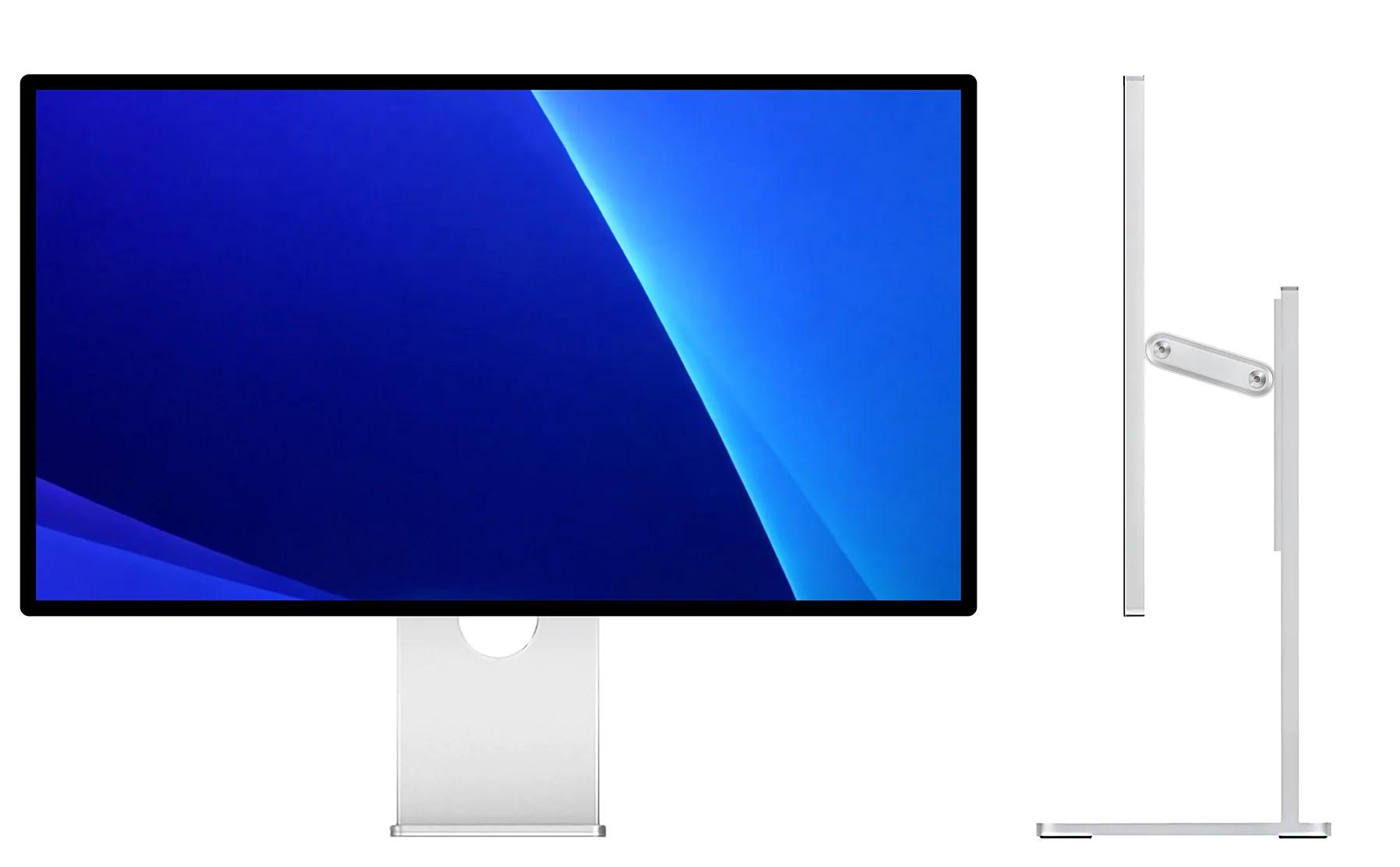

Kuycon P32U
Display finish
Glossy anti-glare coating
Display
Display Retina 5K

27‑inch Retina 5K LED-backlit display with IPS technology

Resolution: 5120‑by‑2880 pixels (14.7 million pixels), 218 pixels per inch
Aspect ratio: 16:9
Refresh rate: 60Hz

High Dynamic Range (HDR)

Brightness: 600 nits
Contrast ratio: 1200:1
Color: P3 wide color gamut, 10 bit, 1 billion colors
Dimensions and weight
Height: 51.8 cm with stand, 35.9 cm display
Width: 61.8 cm
Depth: 18.3 cm with stand, 1.9 cm display
Weight: 7.8 kg with stand, 5.2 kg display
Connectivity
Kuycon G27P
USB‑C, DisplayPort 1.4 (with DSC support), HDMI 2.1, two USB‑C ports, two USB‑A ports and 3.5 mm audio jack*
*two USB‑A ports and 3.5 mm audio jack are on the side of the monitor


One upstream USB‑C port provides PowerDelivery charging up to 100 watts


Supports 5K (5120×2880) at 60 Hz via USB-C, DisplayPort and HDMI for compatible devices

Compatibility
Apple

Mac with Apple Silicon: M1, M1 Pro, M1 Max, M1 Ultra, M2 or later
iPad Pro: all models

Intel MacBook with AMD discrete graphics: 2017 and later
Intel MacBook with integrated graphics: 2019 and later with Intel Core 10 Gen Icelake and later
Intel iMac: 2017 and later
Intel Mac Pro: 2019
Other Intel models only in 4K@60 or lower


Windows/Linux

Notebooks and PCs require Thunderbolt 3/4/USB4 or Displayport 1.4 and above and supported video adapter.

Supported video adapters:

Intel Graphics

Intel Core 10 Gen Icelake and later


Nvidia

GTX950-980Ti (Maxwell) (must be flashed with the latest official firmware)
GTX1050-1080Ti (Pascal)
GTX1650-2080Ti (Turing)*
GTX1650-3080Ti (Ampere)*
*cards with USB-C VRlink can be connected via USB-C cable

AMD

APU Ryzen with integrated Vega graphics and above
RX460-RX590 (Polaris)
Radeon Vega 56/64, Radeon VII and above (Vega)
RX5500-RX6950XT (RNDA/RNDA2)*
*RNDA2 cards with USB-C can be connected via USB-C cable

Consoles

PlayStation, Xbox, Nintendo consoles via HDMI (max 4K@60)
What’s in the Box
Monitor
VESA 100×100 adapter
Remote control
Power cord (1.5 m)
USB-C cable (1 m)
DisplayPort cable (1.8 m)
HDMI cable (1.5 m)
USB-C to USB-A adapter x 2
Flash drive with documentation
Power and operating requirements
Line voltage: 100V to 240V AC
Frequency: 50Hz to 60Hz, single phase
Power: 60 W (max 170 W with PowerDelivery charging)
