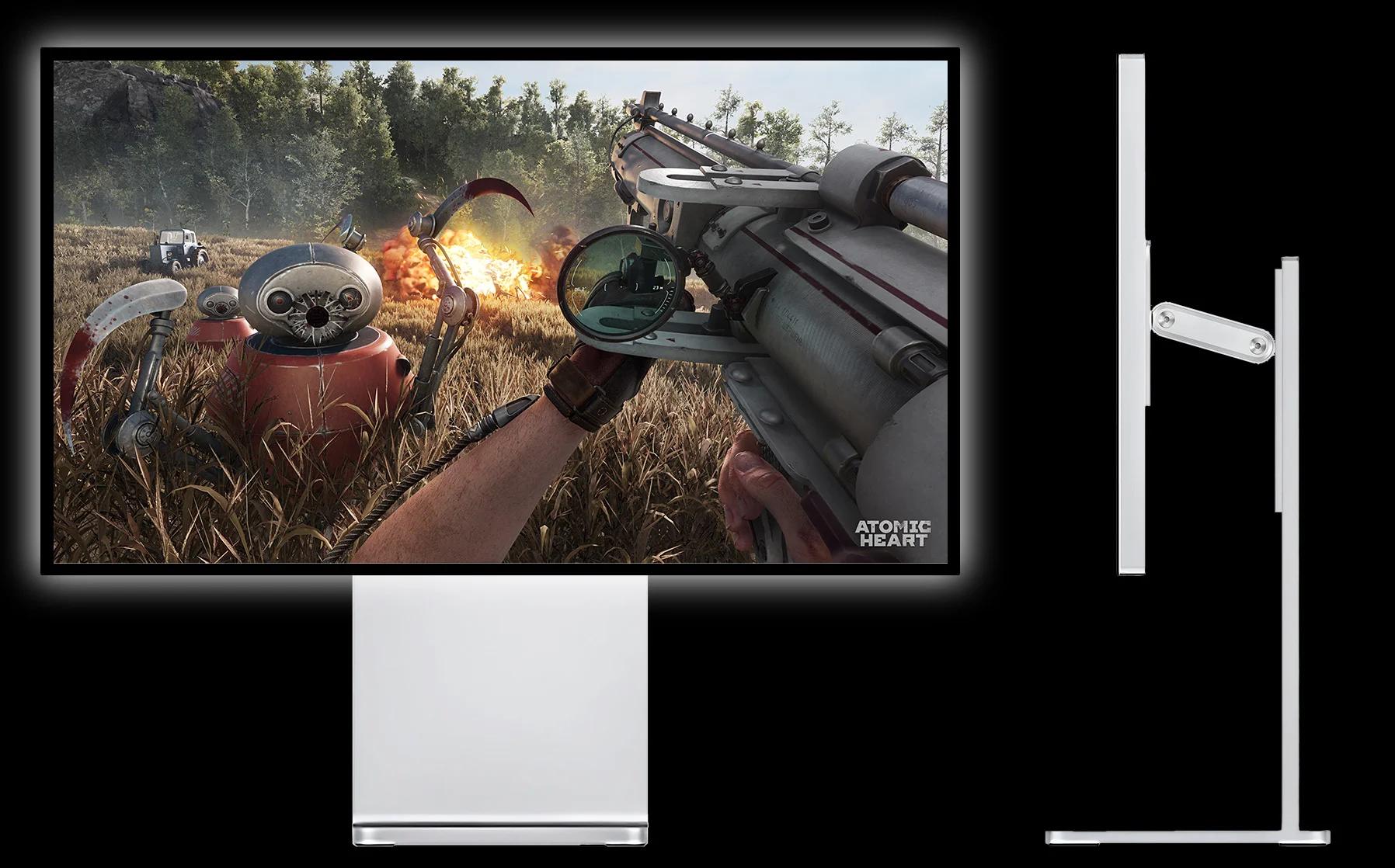

Kuycon G27-X
Display finish
Glossy anti-glare coating
Display
Display 4K

32-inch LED-backlit display with IPS technology

Resolution: 3840×2160 pixels (8.3 million pixels), 139 pixels per inch
Aspect ratio: 16:9
Refresh rate: 144Hz

High Dynamic Range (HDR)

Brightness: 500 nits
Contrast ratio: 1000:1
Color: P3 wide color gamut, 1 billion colors
Dimensions and weight
Height: 58.8 cm with stand, 41.3 cm display
Width: 71.6 cm
Depth: 20.0 cm with stand, 2.76 cm display
Weight: 11.4 kg with stand, 7.8 kg display
Connectivity
Kuycon P32K
USB‑C, DisplayPort 1.4 (with DSC support), HDMI 2.1, two USB‑C ports and 3.5 mm audio jack*
*3.5 mm audio jack are on the side of the monitor


One upstream USB‑C port provides PowerDelivery charging up to 100 watts


Supports 4K (3840×2160) at 144 Hz via USB-C, DisplayPort and HDMI for compatible devices

Compatibility
Apple

Mac with Apple Silicon: M1, M1 Pro, M1 Max, M1 Ultra, M2 or later
iPad Pro: all models

Intel MacBook: 2015* and later
Intel iMac: Late 2014* and later
Intel Mac Pro: 2013* and later
*may require adapters for older models with Thunderbolt 2
Other Intel models will work at lower resolution and/or refresh rate


Windows/Linux

Notebooks and PCs require Thunderbolt 3/4/USB4, Displayport 1.2 and/or HDMI 2.0 and above and supported video adapter.

Supported video adapters:

Intel Graphics

Integrated graphics:
Intel Iris Pro 4th generation processors (Haswell) and above
Intel HD Graphics 5th generation processors (Broadwell) and above


Nvidia

GeForce GTX 660-690 (Kepler) (DisplayPort)
GeForce GTX 750-Titan Z (Kepler) (DisplayPort)
GeForce GTX 950-980Ti (Maxwell)
GeForce GTX 1050-1080Ti (Pascal)
GeForce GTX 1650-2080Ti (Turing)*
GeForce GTX 1650-3080Ti (Ampere)*
*GPUs with USB-C VRlink can be connected with USB-C cable

AMD

APU Ryzen with integrated Vega graphics and above
HD6000, HD7000, R9 200, R9 300, R9 400, R9 500, R9 Fury, R9 Nano (GCN)
RX460-RX590 (Polaris)
Radeon Vega 56/64, Radeon VII and above (Vega)
RX5500-RX6950XT (RNDA/RNDA2)*
*RNDA2 GPUs with USB-C can be connected with USB-C cable

Consoles

PlayStation, Xbox, Nintendo consoles are supported via HDMI (max 4K@60)
What’s in the Box
Monitor
VESA 100×100 adapter
Power cord (1.5 m)
USB-C cable (1.5 m)
DisplayPort cable (1.8 m)
HDMI cable (1.5 m)
USB-C to USB-A adapter x 2
Flash drive with documentation
Power and operating requirements
Line voltage: 100V to 240V AC
Frequency: 50Hz to 60Hz, single phase
Power: 60 W (max 170 W with PowerDelivery charging)
